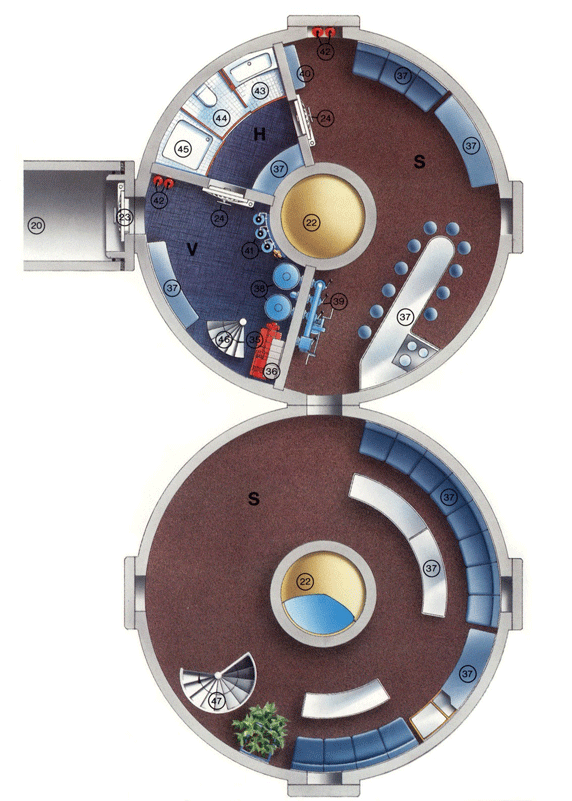

Description Picture 2

V      Main Airlock
H     Decontamination & Sanitary Unit
S      Security Area

20   Passageway Resididential Building
22    Tank for Water / Fuel
23    AT 10 Armored Door
24    AT 3 Airlock Door
35    Generator 220/380 V
36    Emergency Power Supply 24 V
37    Modular Furnishing System
38    R3-Active Filter/K3-CO²- Absorbtion
39    Ventilation Equipment System
40    Control Systems Terminal
41    Air Regeneration System
42    Fire Extinguishers
43    Washroom
44    Toilet – Sewage Ejecting Gear
45    Shower
46    Stairway to Observation Turret
47    Stairway to Module below
